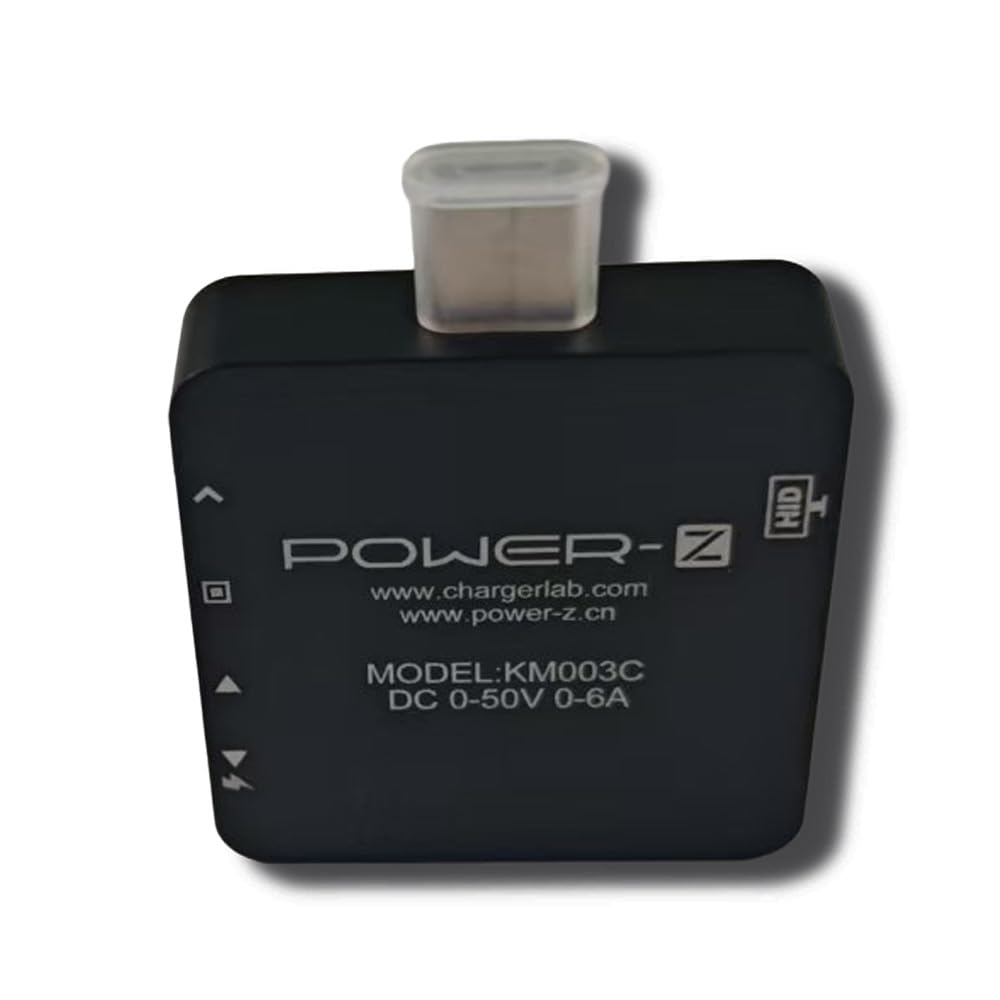

Power-Z KM003C USB C Tester, 1.54" Portable USB C Fast Charging Tester PD3.1 QC5.0 50V 6A 240W, Digital Voltmeter Ammeter Power Meter, for Charger Power Bank Cable Laptop
4.4 (127 items)
Limited Time SaleUS$59.39 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211795002 | Release Date | 2026/04/04 | List Price | US$39.60 | Model Number | 211795002 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Latest PD3.1 & Wide Protocol Compatibility】- Support the newest PD3.1 EPR standard up to 240W and a comprehensive range of fast charging protocols including QC5.0, QC4.0, SCP, FCP, AFC, and UFCS. This USB C power meter is your all-in-one solution for testing virtually any modern USB-C charger, cable, or power bank.
- 【High-Precision Measurement with 20-bit ADC】- Equipped with a advanced 20-bit ADC chip, our USB multimeter delivers exceptional accuracy with voltage resolution of 0.00002V and current resolution of 0.00003A. Ensure precise readings for voltage, current, capacity, and energy to make informed decisions about your devices' power health.
- 【Vivid 1.54-Inch IPS Display & Gravity Sensing】- Features a large, high-contrast 1.54-inch IPS screen that automatically rotates its display orientation with gravity sensing. Enjoy a clear and intuitive visual interface for real-time monitoring from any viewing angle.
- 【Powerful ARM Cortex-M4 Processor】- Driven by an efficient ARM Cortex-M4 192MHz processor, this digital voltmeter ammeter offers fast response times and smooth operation for complex protocol analysis and data processing, ideal for both professional engineers and tech enthusiasts.

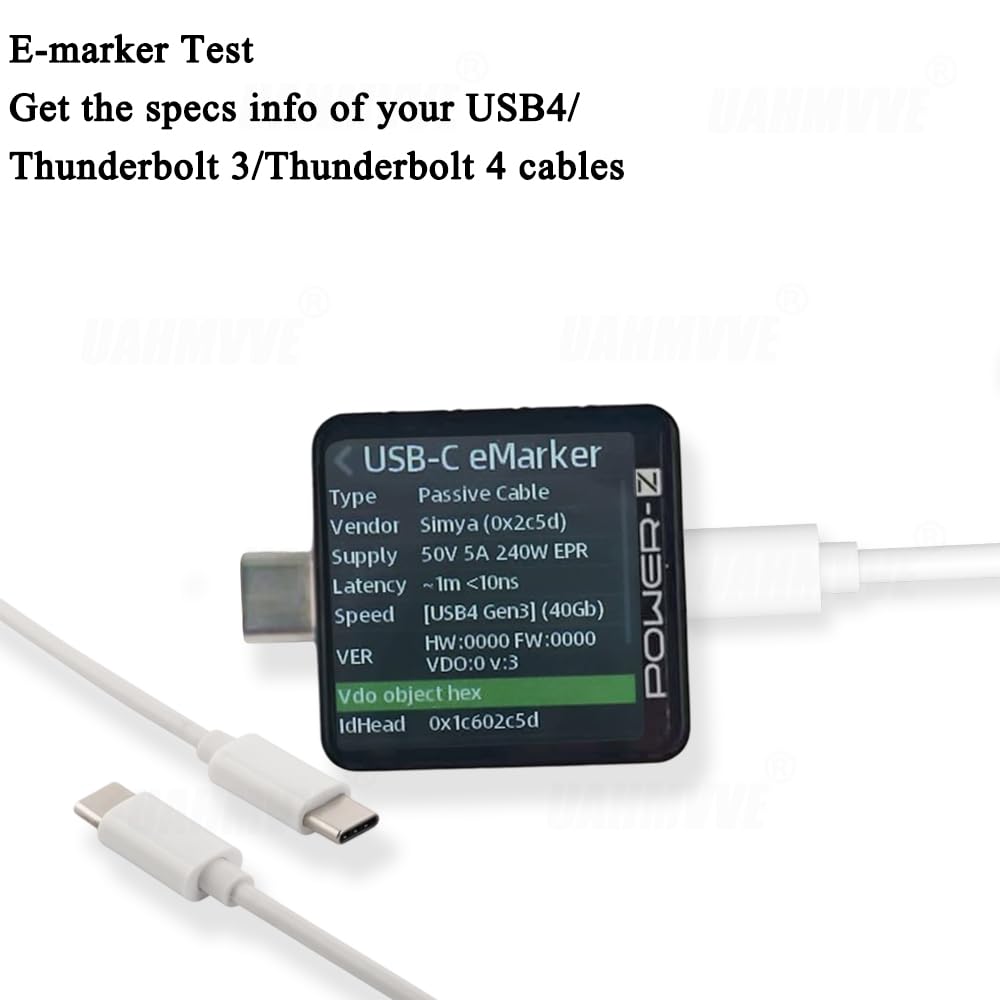

- 【Dual USB-C Ports & E-Marker Detection】- Designed with two USB-C ports for bidirectional measurement and an additional HID port for PC connection. Easily perform E-marker tests to verify the capabilities of USB4, Thunderbolt 3, and Thunderbolt 4 cables.
- 【Advanced PC Software for Deep Analysis】- Unlock powerful features with the dedicated PC software, including USB PD handshake analysis, visual graphical data representation, and local storage of millions of data points for thorough power analysis and monitoring over time.
- 【Multi-Functional Power Diagnostics】- Go beyond basic testing. This tester supports PDO analysis, protocol decoding, Apple charger SN code reading, and offline data recording, providing a complete toolkit for in-depth diagnostics of your charging ecosystem
- 【Two-Way Measurement & Broad Compatibility】- Capable of measuring both input and output power (0-50V, 0-6A). It's perfectly suited for testing a wide array of devices from smartphones and laptops to power banks and car chargers, making it a versatile instrument for various scenarios.
| Color | Silver |
|---|---|
| Model | KM003C |
| Brand Name | Luoyiilea |
| Style Name | Modern |
| Item Weight | 15.7 ounces |
| Manufacturer | LUOYIILEA |
| Power Source | Usb Type-c |
| Item Dimensions | 1.5 x 0.34 x 1.85 inches |
| Measurement Type | Ammeter, Voltmeter, Multimeter |
| Specification Met | CE, EMC, FCC, RoHS |
| Included Components | Power Tester Meter |
